Mavimare GF 350 HD hydraulic steering for outboard motors up to 350 HP

The Mavimare GF 350 HD is a heavy-duty hydraulic steering system for outboard motors up to 350 HP.
All parts of this pump and cylinder are made of aluminum or stainless steel 316 quality.
The bolts and nuts are of A4 quality, which means that this hydraulic control can also be used at sea because it is seawater resistant.

This control is recommended for engines from 80 to 350 HP.

It comes complete with 2 x 7.5-meter hoses, which can be made to measure by means of heavy-duty clamp couplings.
These hoses have a maximum working pressure of 190 bar (test pressure 300 bar).
The controller itself has a working pressure of up to 70 bar.
The pump has a pressure relief valve and non-return valves.
It fits on every motorcycle and is suitable for engines up to 300 HP.

Suitable for outboard motors of the following brands:

• Yamaha
• Suzuki
• Honda
• Mercury
• Johnson
• Evinrude
• Selva
• Tohatsu
• Parsun

Specifications:

Brand: Mavimare
Type: GF350HD
Weight pump: 3.7 kg
Max pressure pump: 70 bars
Max pressure hoses: 190 bar
Number of plungers in pump: 7
Volume pump: 27 cm³
Volume cylinder: 152 cm³
Cylinder width: 65.6 cm
Revolutions: 5.6

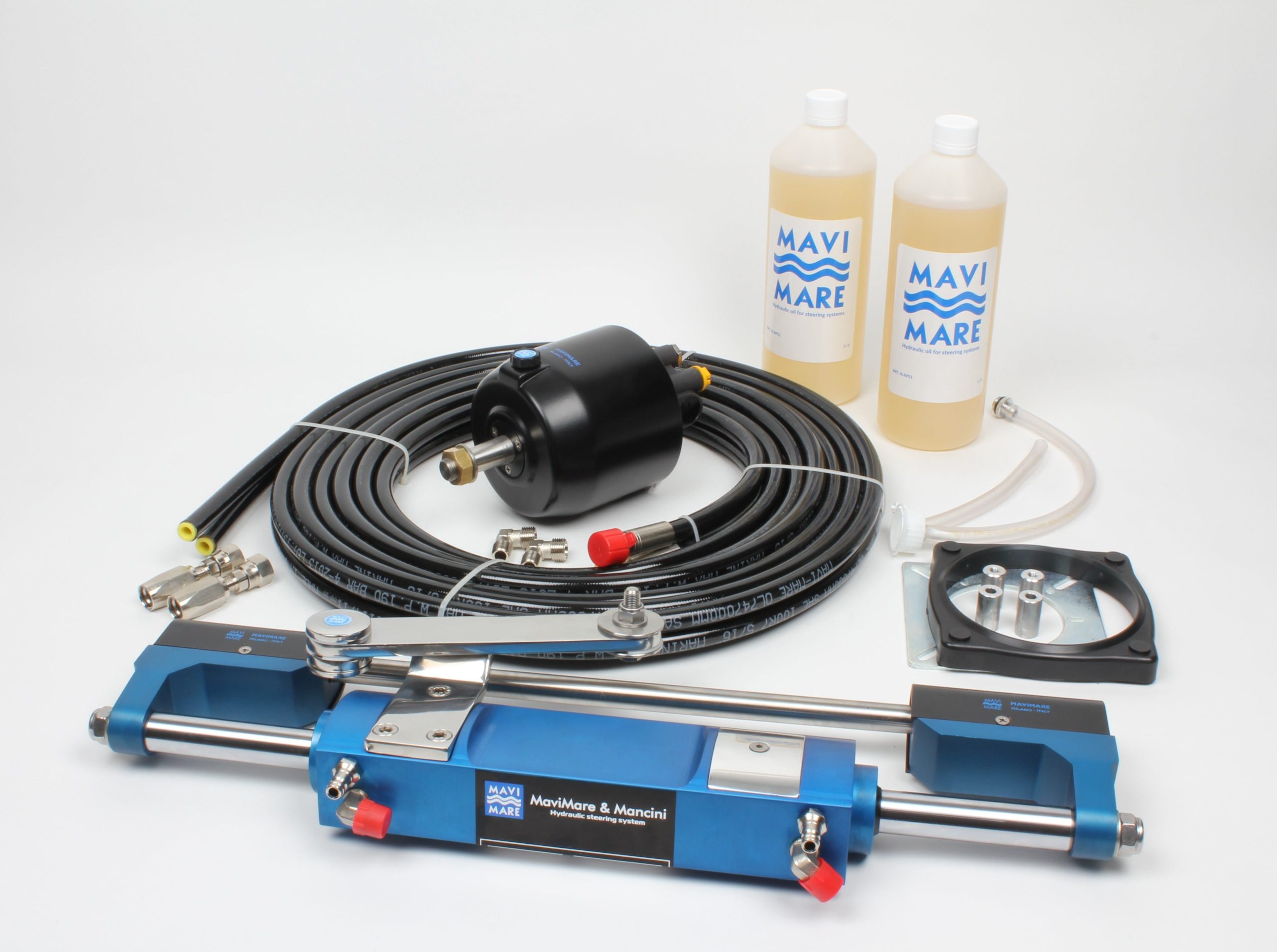

Contents box:

• Hydraulic steering pump (can also be installed flush).

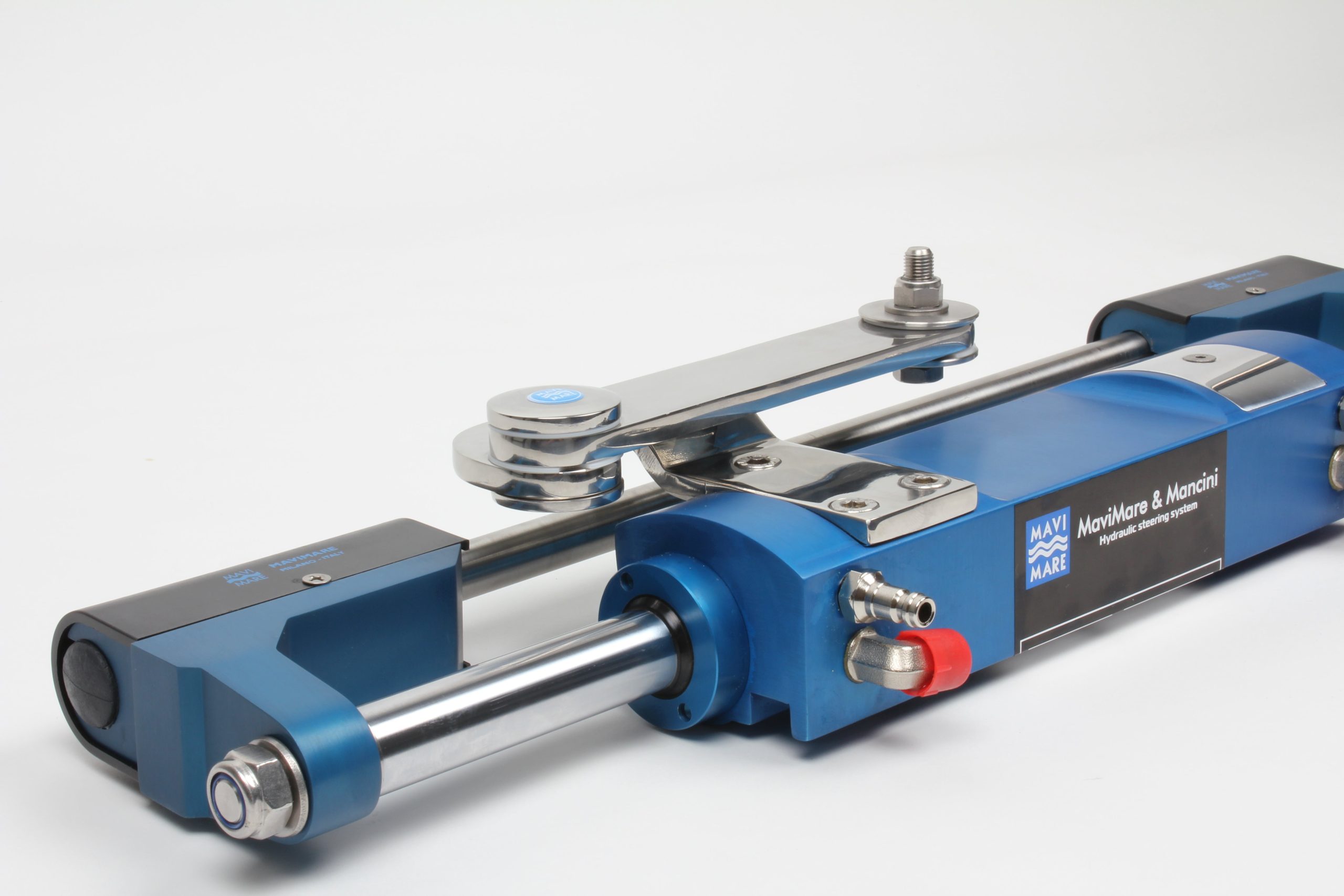

• Steering cylinder
• 2 hydraulic hoses (2 x 7.5 meters).
• 2 bottles of hydraulic oil
• Fill/vent hose
• Fill nipple
• All mounting/fasteners
• Very clear assembly manual.
